INNOVATIVE FPGA CONTROLLER CARD FOR INVERTER SYSTEMS

• Designed schematic and hardware for three phase inverter that takes 320V to 1200V DC and
can take unto 10kW load using Altium Designer
• Designed Current and Voltage Sensing circuit for feedback using Altium Designer

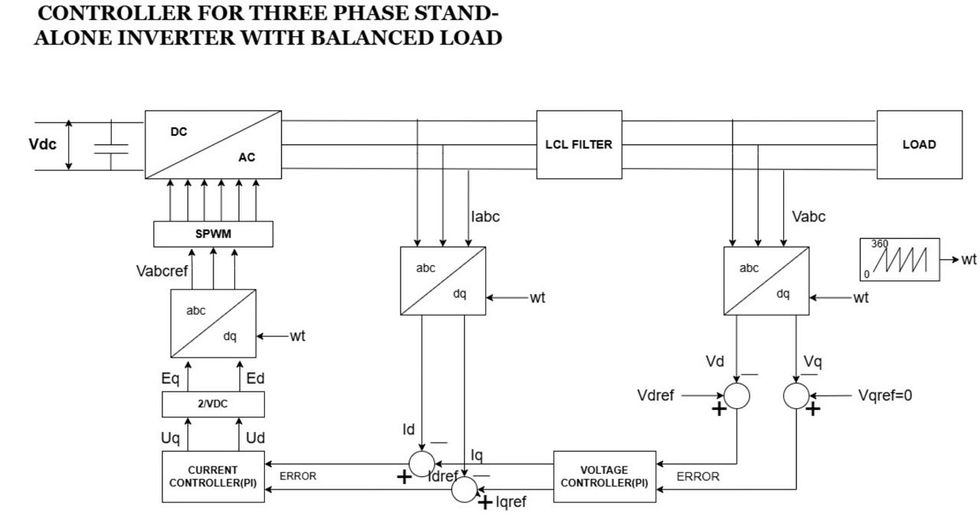

• Designed PI Controller for feedback system using Matlab Simulink

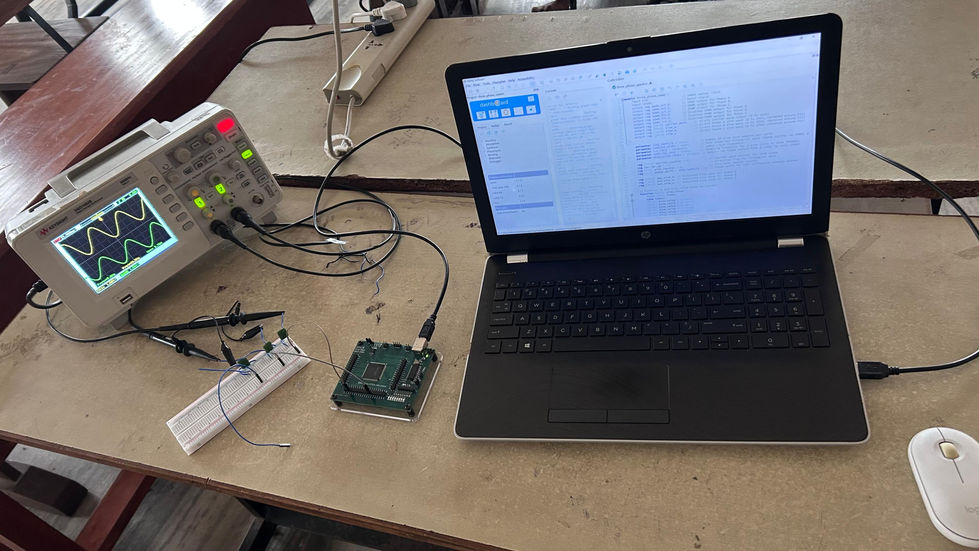

• Designed and tested FPGA Controller Card for the designed inverter using Icarus Verilog and
Efinity Software
• Developed the PI controller code using Icarus Verilog and it was tested in gtkwave.
• Developed and ran the PI Controller model in Matlab Simulink that primarily used
transformation block method.
